LM-PSC01 |
|

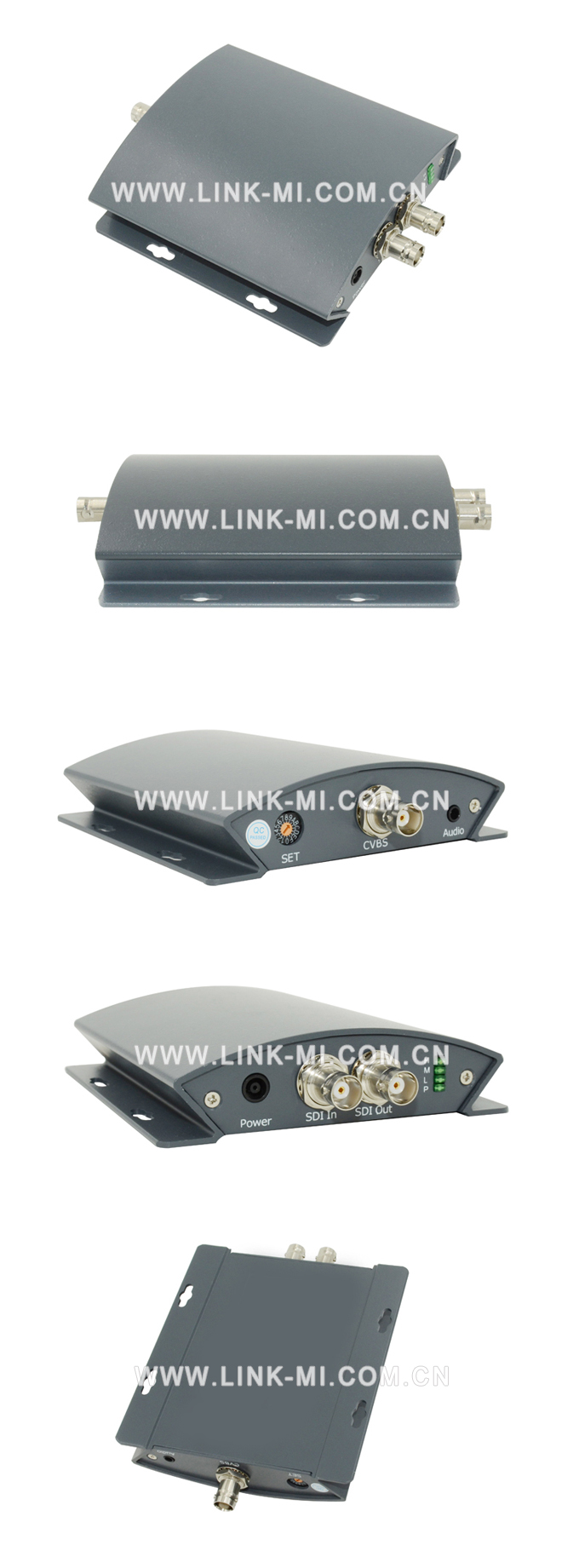

| LINK-MI LM-PSC01 3G/HD/SD SDI to CVBS/AV Converter |
| |
Introduction:
1. Supports 3G/HD/SD SDI Signal Input2. Supports 3G/HD/SD SDI Signal Looping Output3. Supports 1080p/1080i/720p/480i/576i Video format4. Supports 1080PSF/ 720P 30/25/24Hz5. SD CVBS output ( Supports PAL/NTSC )6. Supports Down-Conversion function7. Down-Conversion have three mode ( Left/Right Cut, T/B Black, Point to Point Output ) can be choosed8.Adaptively SDI Input signal9.De-embedded Audio from SDI Input signal10 Supports Analog stereo audio output11. SDI Looping out and synchronous CVBS output12. Color Bar output13. Can be customized |
|
|
| |
|
|
|
|
Specification
|
Name |
SDI to CVBS Converter |
|
Model No. |
LM-PSC01 |
|

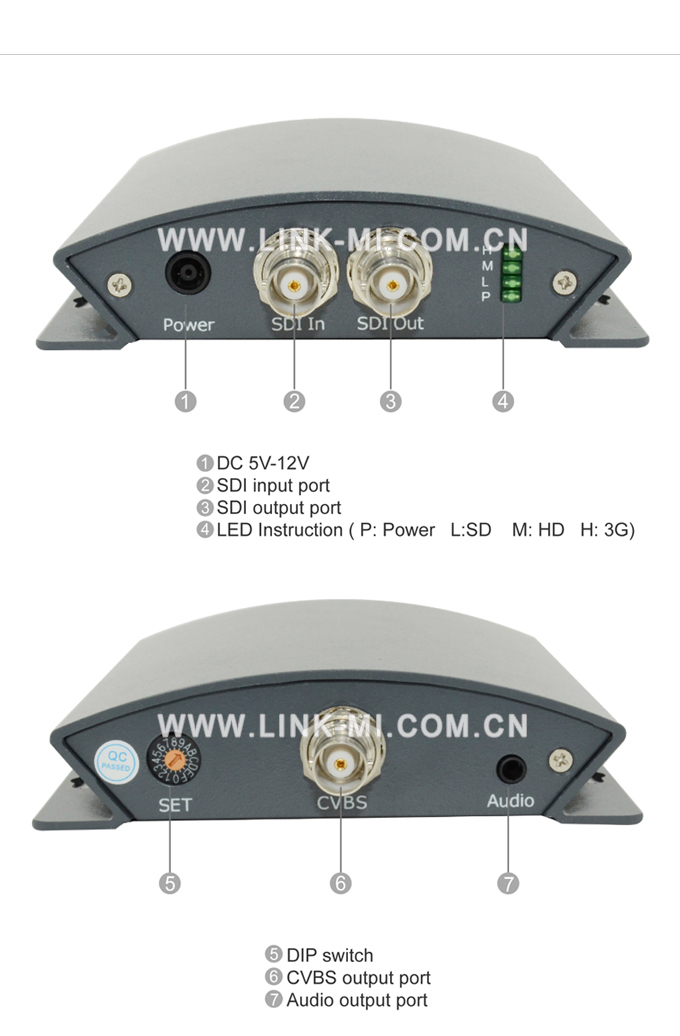

SDI Input / Output |
Signal |
3G/HD/SD SDI |
|
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps-2.97Gbps |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Output |
Output Signal |
Analog Stereo Audio |
|
Impedance |
16Ω |
|
Connector |
Earphones |
|
CVBS Output |
Output Signal |
Analog CVBS Signal |
|
Connector |
BNC ( IEC169-8 Standard ) |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
|
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |

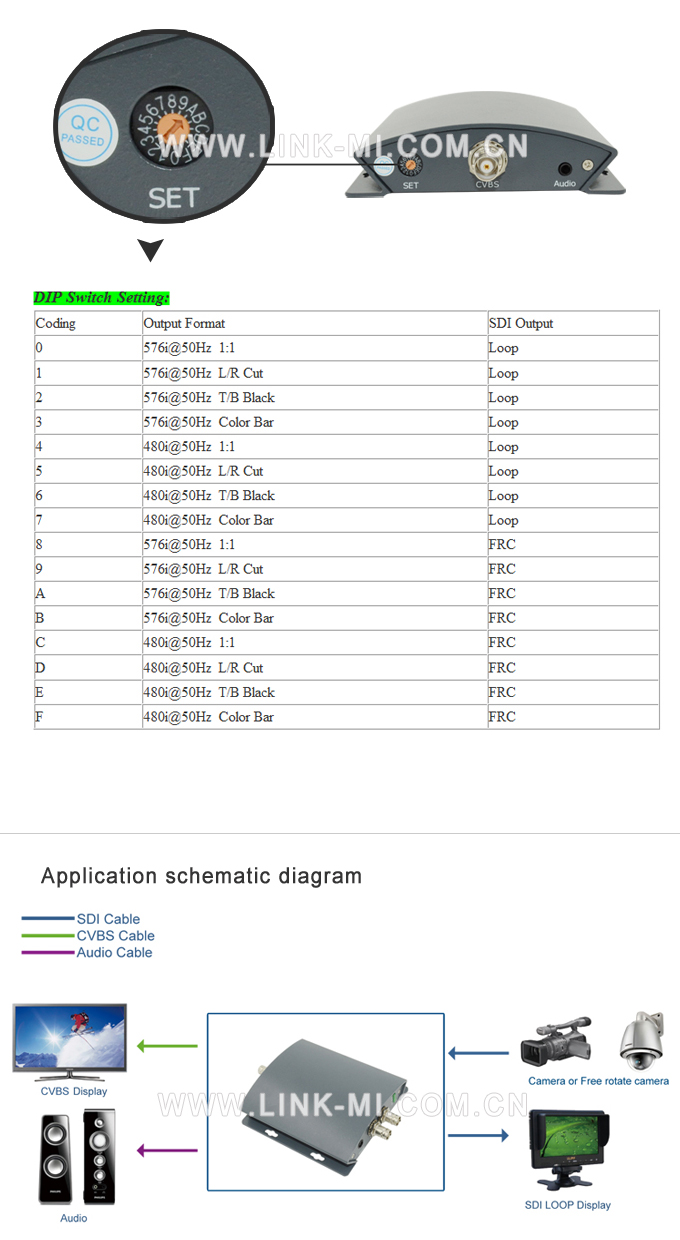

DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH | Packing Contents
1. Main Unit. 1pcs 3G/HD/SD SDI to CVBS/AV Converter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual
|
 |
|
|
|
|
